Dell Alienware 17 R5 DDR51 LA-F551P LA-F552P LA-F553P Rev 1.0 a00外星人笔记本图纸

DDR51 LA-F551P LA-F552P LA-F553P

戴尔Alienware 17 R5 DDR51 LA-F551P LA-F552P LA-F553P Rev 1.0 a00外星人笔记本图纸.pdf

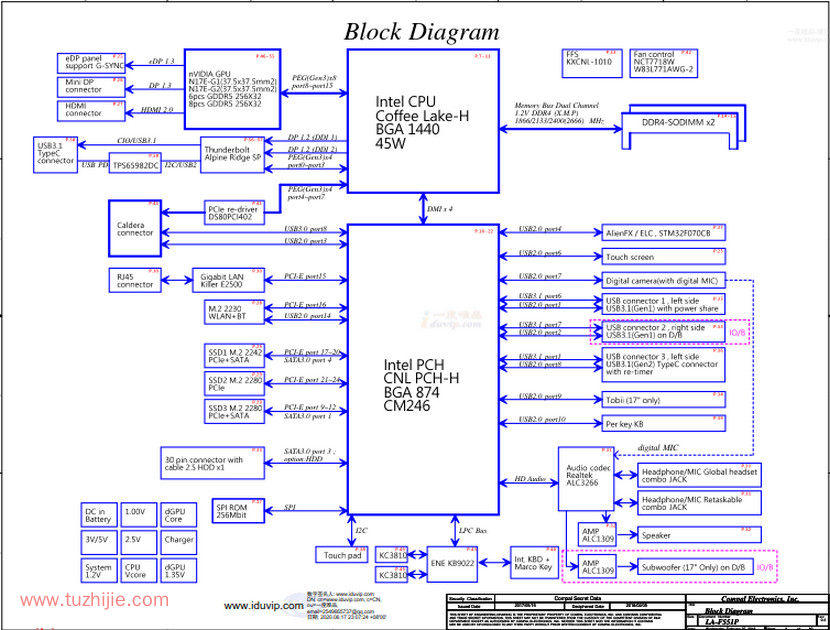

DDR51
Coffee Lake-H 45W
CNL PCH-H with nVIDIA N17E
REY：10（A00）
2018.02.06
MODEL NAME : DDR51(15")/DDR71(17")
PROJECT CODE : ANRDDR5100/ANRDDR7100
PCB NO : DAC0000E000 : LA-F551P M/B NV G1G2
DAC0000F000 : LA-F552P M/B NV G3
DAB00021000 : LA-F553P M/B AMD
DA4002AV000 : LS-D751P LOGO 15/B
DA800171000 : LS-D752P LOGO 17/B
DA4002B0005 : LS-D753P PWR_15/B
DA4002AW000 : LS-D754P PWR_17/B
DA800171000 : LS-D755P 10_127/B
DA4002ND000 : LS-F551P TRON__LCD_15/B
DA4002NE000 : LS-F552P TRON_REAR 15/B
DA80017K000 : LS-D759P 10 14L/B
DA4002NG000 : L5-F554P TRON_LCD 17/B
DA4002NH000 : LS-F555P TRON_REAR _17/B
DA4002NF000 : LS-F553P TRON_FRONT_15/B
DA4002NI000 : LS-F556P TRON FRONT 17/B
DA30000W300 : LF-D751P Head 15/B
DA30000W400 : LF-D752P Head 17/B
DA30000W401 : LF-D752P Head.17/B(For LOGO 15/B)
DA300013900 : LF-F551 TRON_15/B
DA300013E00 : LF-F552 TRON_17/B
