品牌 华硕Asus
型号 K52JR

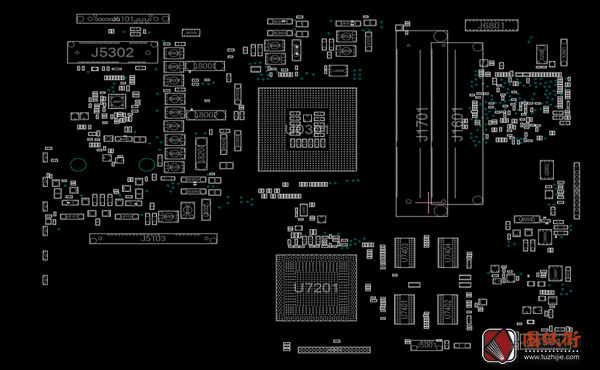

图纸类型 笔记本点位图
图纸格式 FZ+ASC
此点位图合集包含以下图纸：
ASUS K52JR (69N0GUM10C02P-01) REV 2.0 asc
ASUS K52JR (69N0GUM10C05-01) REV 2.0 asc
ASUS K52JR (69N0GUM10C11P-01) REV 2.0 asc
ASUS K52JR (69N0GUM10C15-NP-DIMM3) REV 2.0 asc
ASUS K52JR (69N0GUM10C26,28,35,36,38-NP-DIMM3-1) REV 2.0 asc
Asus K52JR asc
K52JR_1.0.fz
K52JR_2.2.fz
K52JR_DC_BOARD_2.0.fz
K52JR_DC_BOARD_2.1.fz
K52JR_DC_BOARD_2.2.fz
K52JR_IO_BOARD_2.0.fz
K52JR_IO_BOARD_2.1.fz
K52JR_LID_BOARD_2.0.fz
K52JR_MAIN_BOARD_2.0.fz
